Pipeline Pump

Pipeline Pump – High Efficiency Industrial Fluid Transfer Solution

Pipeline Pumps, also known as in-line centrifugal pumps, are widely used in industrial and commercial fluid transport systems.

Our Pipeline Pump series is engineered to meet demanding B2B requirements with a focus on efficiency, durability, and system compatibility.

High Flow Water Pump for Farming
The High Flow Water Pump For Farming is a high-flow centrifugal agricultural water pump used for rapid water delivery and efficient irrigation over large areas.
read more
Pipeline booster centrifugal pump
A pipeline booster centrifugal pump is a centrifugal pump device used to increase the pressure of fluids within pipelines.
read more
Pipeline Circulation Pump
A pipeline circulation pump is a centrifugal pump used for the continuous circulation of liquids in pipeline systems.
read more

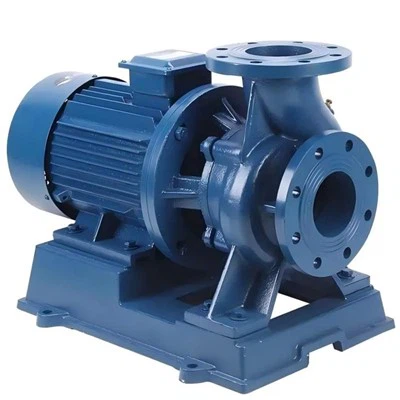

Single-stage Horizontal Feed Water Pump
A single-stage horizontal feed water pump is a single-stage horizontal centrifugal pump that uses centrifugal force to deliver and pressurize water.
read more

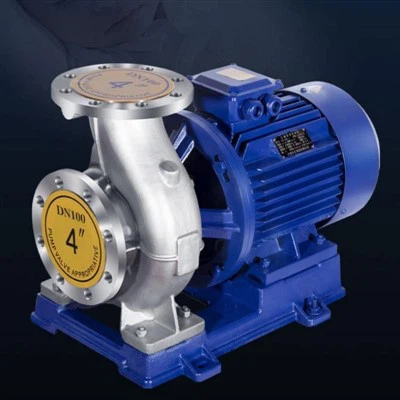

Stainless Steel Pipeline Pump
The Stainless Steel Pipeline Pump is a type of centrifugal pump designed for direct installation within pipeline systems.
read more

Specification

Power	0.75KW to 175KW
Flow	3.7 to 200 m³/h
Head	10 to 150 m
Certifications	ISWB/IRG/ISW/IHG/ISWH

Pipeline booster centrifugal pump manufacturers

Features

Space-Saving "In-Line" Architecture
Our compact vertical design allows the pump to be installed like a valve. This saves up to 40% of floor space compared to traditional end-suction pumps—no heavy concrete foundations required.

Maintenance Without Pipe Disturbance
Featuring a "Top Pull-Out" design, the motor and rotating assembly can be serviced or replaced without disconnecting the pump body from the pipeline, reducing maintenance labor by 60%.

Vibration-Free Operation
Every impeller stack is dynamically balanced to ISO 1940 G2.5 standards. This ensures ultra-quiet operation and protects your piping system from fatigue-related leaks and cracks.

Advanced Material Matrix: Built for Your Medium

Material Option	Engineering Advantage	Best For
Ductile Iron (QT450)	Anti-Rust Electrophoretic Coating prevents internal scaling and ensures clear water for 10+ years.	HVAC, Cooling Towers, Municipal Water.
Stainless Steel 304/316	Precision-cast (Lost Wax) for smooth flow paths and superior chemical resistance.	RO Systems, Food & Beverage, Mild Acids.
Duplex SS (2205/2507)	Double the yield strength of standard SS; exceptional resistance to pitting and chloride stress.	Desalination, Offshore, Brine Circulation.
Carbon Steel (WCB)	High structural integrity and API 610 compliant options for high-pressure oil transport.	Crude Oil, Refined Products, Petrochemicals.

Customization & Engineering Support

API 610 & 682 Compliance: We offer specialized configurations for refinery service, including API Plan 11/21/52 seal flushing systems.

Variable Frequency Ready (VFD): All motors can be equipped with VFD-rated insulation and reinforced bearings for smart, energy-saving pressure control.

Non-Standard Connections: Custom flange ratings (PN16, PN25, ANSI 150/300) and face-to-face dimensions to match your existing infrastructure perfectly.

FAQ

Q: Can your pipeline pumps directly replace my existing Grundfos or KSB units?

A: Yes. Our pumps follow ISO 2858 and DIN 24255 standards. The center-to-center dimensions are engineered to be "drop-in" compatible, allowing you to upgrade your system with zero piping modifications.

Q: How do you handle high-temperature liquids?

A: For liquids above 100°C (up to 150°C), we equip the pump with Viton® elastomers and a specialized heat-dissipating bracket to protect the motor bearings and mechanical seal from thermal damage.

Q: Do you provide NACE MR0175 compliant materials?

A: For oil and gas applications involving H2S, we provide fully compliant NACE materials and documented hardness testing to ensure safety in sour service environments.

Q: What is the typical testing protocol before shipment?

A: Every pump undergoes a Hydraulic Performance Test (Flow, Head, Efficiency) and a 1.5x Rated Pressure Hydrostatic Test. We invite third-party inspectors (SGS/BV) to witness these tests upon request.

We're well-known as one of the most professional pipeline pump enterprises in China, featured by quality products and good service. Please rest assured to buy discount pipeline pump in stock here from our factory. For quotation, contact us now.
